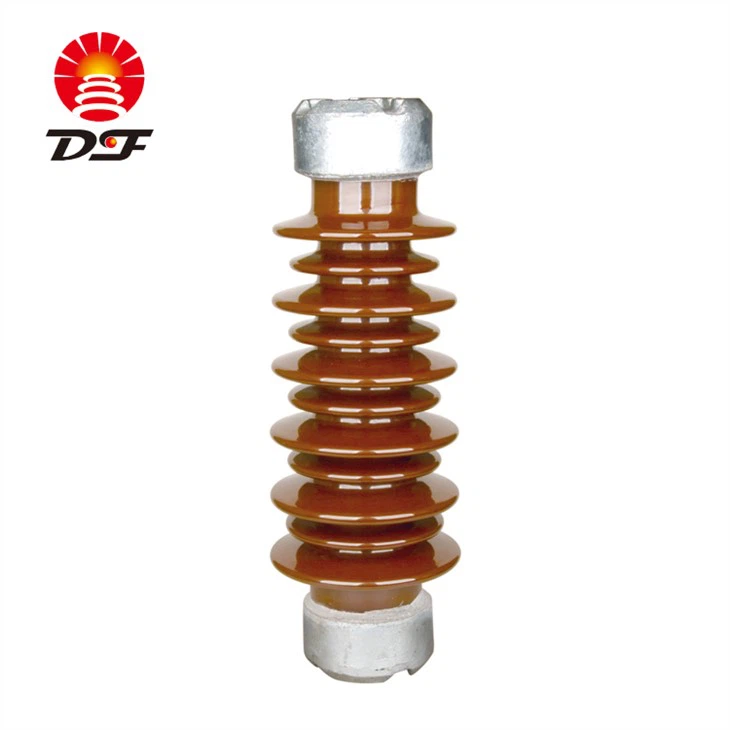

Lub npe: khoom core ncej insulator
Hom: C4-200 khoom core ncej insulator
Yam hom: C4-125,C4-150,C8-170,C6-250
Voltage Ntau: 11kV ~ 220kV
Txuj: IEC60273
Graze xim ntawm insulators: Brown los yog grey
Mechanical tsis load: 4kN, 6kN, 8kN
Khoom siv: Alumina thiab silica porcelain
Daim ntawv thov: Substation thiab switchgear

Dongfang tsim cov tub ntxhais kawm ntawv insulator raws li tus qauv IEC60273 lossis cov neeg siv khoom tshwj xeeb tuaj yeem muab tau raws li kev thov.In standard IEC60273, creepage nrug yog standardized rau post insulators hauv chav kawm I thiab II.

Technical specifications:

Hom No.	C4-125	C4-150	C8-170	C4-200	C6-250	C4-325
Qhov siab (mm)	305±1	355±1	445±1	475±1	560±1	770±1
Creepage nrug (mm)	500	660	850	950	1200	2248
Bending zog (kN)	4	4	8	4	6	4
Torsion zog (Nm)	800	1000	2000	1200	2000	2000
Fais fab zaus ntub dej tiv taus voltage (kV)	50	50	70	70	95	140
xob laim impulse withstand voltage (kV)	125	150	170	200	250	325

Peb Cov Kev Pabcuam:

1. Kev paub nplua nuj hauv ODM thiab OEM
2. Zoo heev One-stop service
3. High Quality Precision Customized forging & Casting kev pab cuam
4. Tus nqi qis tshaj
5. Kev tswj xyuas nruj
6. Peb tuaj yeem tsim nws raws li cov neeg siv khoom xav tau.

FAQ:

1. Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas uas muaj ntau tshaj 21 xyoo kev tsim khoom.

2. Q: Koj cov nqe lus them nqi yog dab tsi?
A: Peb feem ntau lees txais txhua yam kev them nqi, T / T, L / C, Nyiaj Ntsuab.

3. Q: Koj lub tuam txhab puas txais customization?
A: Peb txais kev pabcuam OEM.

4. Q: Koj cov nqe lus warranty yog dab tsi?
A: Peb muab 24 lub hlis warranty cov nqe lus.

5.Q: Koj puas muab cov qauv? Puas yog dawb?
A: Yog tias tus qauv qis qis, peb yuav muab cov qauv dawb nrog cov khoom thauj. Tab sis rau qee qhov kev kuaj tus nqi siab, peb yuav tsum tau sau tus nqi coj mus kuaj, tus nqi coj mus kuaj tuaj yeem xa rov qab rau cov neeg siv khoom yog tias lawv tso qhov kev txiav txim.

6.Q: Koj qhov kev pabcuam shipping yog dab tsi?
A: Peb tuaj yeem muab cov kev pabcuam rau kev booking nkoj, khoom sib sau ua ke, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.
