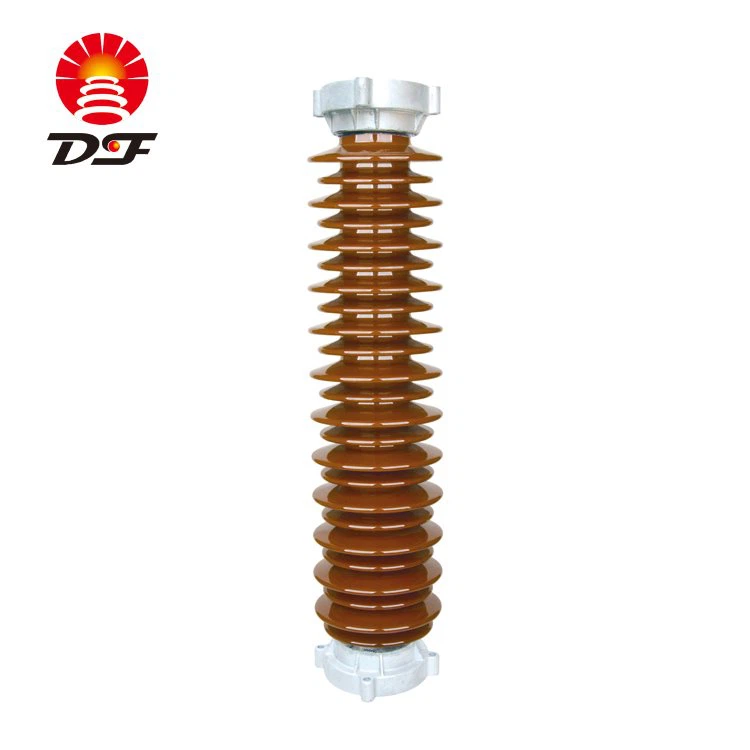

Lub npe: khoom tseem ceeb chaw nres tsheb ncej insulator
Hom: C4-325 cov khoom tseem ceeb chaw nres tsheb ncej insulator
Yam hom: C6-450,C4-550,C8-650,C6-950
Voltage Ntau: 11kV ~ 220kV
Txuj: IEC60273
Graze xim ntawm insulators: Brown los yog grey
Mechanical tsis load: 4kN, 6kN, 8kN, 10kN
Khoom siv: Alumina thiab silica porcelain
Daim ntawv thov: Substation thiab switchgear
Khoom tseem ceeb chaw nres tsheb ncej insulator tsim los ntawm DONGFANG yog siv nyob rau hauv substation thiab hloov iav. Peb tsim sab nraum zoov plooj (porcelain) khoom core post insulator nrog lwm cov hlau fittings thiab lub cev insulator ntawm chav tsev yog tsim los ntawm zoo aluminium oxide porcelain, C130 los yog C120.
Technical specifications:
Hom No. | C4-325 | C6-450 | C4-550 | C8-650 | C6-950 | C10-1050 |
Qhov siab (mm) | 770±1 | 1020±1 | 1220±1 | 1500±2.5 | 2100±3.5 | 2300±3.5 |
Creepage nrug (mm) | 2248 | 2300 | 2900 | 3350 | 4900 | 5650 |
Bending zog (kN) | 4 | 6 | 4 | 8 | 6 | 10 |
Torsion zog (Nm) | 2000 | 3500 | 3000 | 4000 | 3000 | 4000 |
Fais fab zaus ntub dej tiv taus voltage (kV) | 140 | 185 | 230 | 275 | 395 | 460 |
xob laim impulse withstand voltage (kV) | 325 | 450 | 550 | 650 | 950 | 1050 |
Peb Cov Kev Pabcuam:
1. Kev paub nplua nuj hauv ODM thiab OEM
2. Zoo heev One-stop service
3. High Quality Precision Customized forging & Casting kev pab cuam
4. Tus nqi qis tshaj
5. Kev tswj xyuas nruj
6. Peb tuaj yeem tsim nws raws li cov neeg siv khoom xav tau.
FAQ:
1. Q: Koj cov nqe lus warranty yog dab tsi?
A: Peb muab 24 lub hlis warranty cov nqe lus.
2.Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.
3.Q: Koj nyob qhov twg?
A: Peb lub Hoobkas nyob ntawm Liling City, Hunan Province, Suav.
4.Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab.
5.Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog lawm, peb muaj kev sim ua ntej xa khoom.
6.Q: Koj muaj cov qauv dab tsi?
A: Peb cov khoom ua tau raws li ANSI, BS, DIN, IEC thiab lwm yam.
