Paub meej

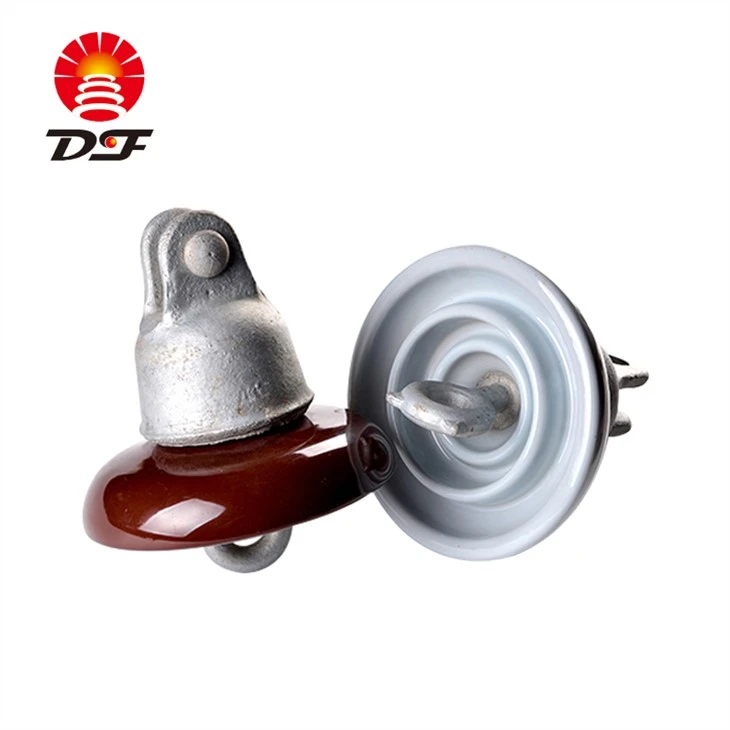

Lub npe: Disc suspension insulator
Hom: ANSI 52-1 Disc suspension insulator
Yam muaj feem xyuam: ANSI 52-1, 52-2, 52-3, 52-4, 52-5, 52-6, 52-8, {{7} }, 52-10
Voltage Ntau: 11kV ~ 220kV
Txuj: ANSI tus qauv C29.2
Graze xim ntawm insulators: Brown los yog lub teeb grey
Mechanical tsis load: 45kN, 70kN, 120kN, 160kN thiab raws li ib tus neeg thov kev thov
Khoom siv: Alumina thiab silica porcelain
Daim Ntawv Thov: Cov kab hluav taws xob siv hluav taws xob thiab cov kab sib kis
Kev piav qhia
Peb Disc Suspension Insulators yog tsim los ntawm cov hlua, feem ntau yog ob lossis ntau dua, txuas ua ke los muab kev tiv thaiv hluav taws xob ntau dua li ib qho insulator. Lawv feem ntau yog siv nyob rau hauv high-voltage transmission towers, txhawb kev sib kis kab ntawm steel yees, cais cov kab ntawm cov yees, thiab ua lub luag haujlwm tseem ceeb hauv kev nyab xeeb ntawm hluav taws xob. Thiab lawv feem ntau siv cov plooj (porcelain) ua cov khoom tseem ceeb, raws li cov plooj (porcelain) yog nyob deb ntawm cov khoom siv insulating feem ntau, tab sis kuj muaj ntau hom iav.
Nta
Peb Disc Suspension Insulators muab cov rwb thaiv tsev thiab kev txhawb nqa rau cov kab hluav taws xob hauv kev ncua thiab kev nruj, thiab lawv feem ntau ua haujlwm ua ke hauv cov hlua uas tuaj yeem hloov tau yooj yim rau txhua qhov kev taw qhia, muab kev yooj yim hauv cov kab sib kis thiab tiv thaiv cov neeg siv hluav taws xob los ntawm kev sib tsoo. Tsis tas li ntawd, lawv tau ua los ntawm cov ntaub ntawv zoo dielectric zog thiab rwb thaiv tsev, yog li lawv muaj peev xwm tiv taus high voltages thiab lub cev thiab hluav taws xob khoom ntawm lub insulator tsis cuam tshuam los ntawm kev hloov ntawm ib puag ncig, tswj kev ua haujlwm ruaj khov.
Parameters:
Technical Specifications:
ANSI Chav Kawm | 52-1 | 52-2 | 52-3 | 52-4 | 52-5 | 52-6 | 52-8 | 52-9 | 52-10 | |
Main Dimension | Nominal txoj kab uas hla | 160 | 200 | 254 | 254 | 254 | 254 | 298 | 114 | 298 |
Chav ntsuas qhov sib nrug | 140 | 146 | 146 | 146 | 146 | 146 | 146 | 160 | 165 | |
Creepage nrug (mm) | 178 | 210 | 292 | 292 | 279 | 279 | 279 | 171 | 279 | |
Ua ke M&E lub zog (kN) | 45 | 70 | 70 | 70 | 111 | 111 | 160 | 45 | 160 | |
Mechanical Impact Strength (nm) | 4.5 | 5 | 5.5 | 5.5 | 6 | 6 | 9 | 4.5 | 9 | |
Tensionproof test load (kN) | 22 | 33.5 | 33.5 | 33.5 | 55.6 | 55.6 | 80 | 22 | 80 | |
Lub hwj chim zaus flashover voltage (kV) | Qhuav | 60 | 65 | 80 | 80 | 80 | 80 | 80 | 60 | 80 |
ntub | 30 | 35 | 50 | 50 | 50 | 50 | 50 | 30 | 50 | |
Critical Impulse flashover voltage (kV) | Pos | 100 | 115 | 125 | 125 | 125 | 125 | 125 | 90 | 125 |
Neg | 100 | 115 | 130 | 130 | 130 | 130 | 130 | 100 | 130 | |
Fais fab zaus puncture voltage (kV) | 80 | 90 | 110 | 110 | 110 | 110 | 110 | 80 | 110 | |
RIV Data | Test voltage | 7.5 | 7.5 | 10 | 10 | 10 | 10 | 10 | 7.5 | 10 |
Max.RIV ntawm 1MHz (μV) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Siv tau Standard | ANSI C29.2 | |||||||||
FAQ:
1.Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas uas muaj ntau tshaj 21 xyoo kev tsim khoom.
2.Q: Koj cov khoom tseem ceeb yog dab tsi?
A: Porcelain thiab composite insulators, kho vajtse ntawm txhua yam rau high-voltage daim ntaub ntawv thiab lwm yam khoom.
3.Q: Kuv puas tuaj yeem tau txais qee qhov qauv?
A: Yog lawm, qauv txiav txim yog muaj rau kev kuaj xyuas thiab kev ua lag luam.
Cim npe nrov: disc ncua kev kawm ntawv insulator
