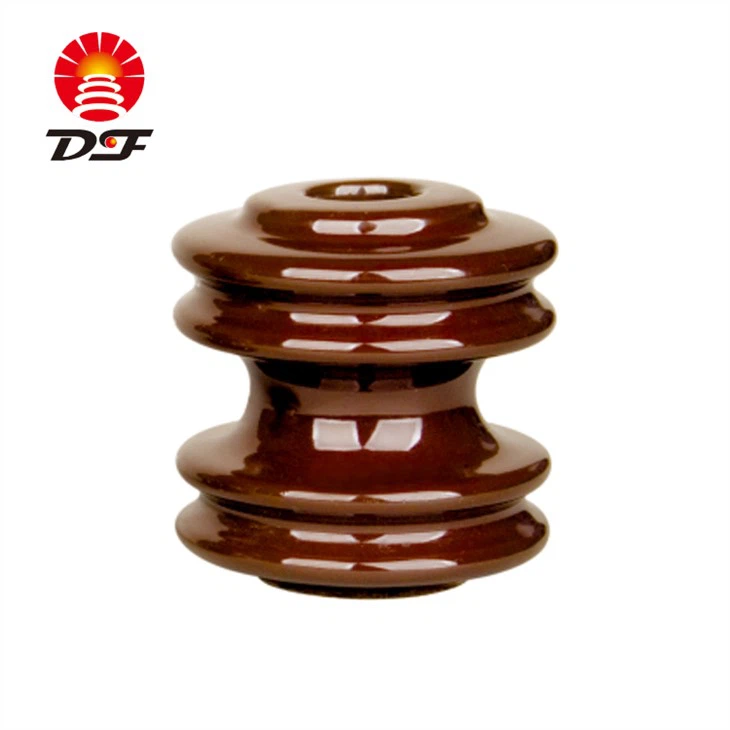

Lub npe: porcelain spool insulator
Hom: 53-3 porcelain spool insulator
Lwm yam hom: 53-1, 53-2, 53-3, 53-4, 53-5
Voltage Ntau: 0.4kV ~ 33kV
Txuj: ANSI txuj 29.3
Graze xim ntawm insulators: Brown los yog lub teeb grey
Mechanical tsis load: 9kN, 13kN, 18kN, 20kN, 27kN thiab raws li ib tus neeg thov kev thov
Khoom siv: Alumina thiab silica porcelain
Daim Ntawv Thov: Cov kab hluav taws xob siv hluav taws xob thiab cov kab sib kis

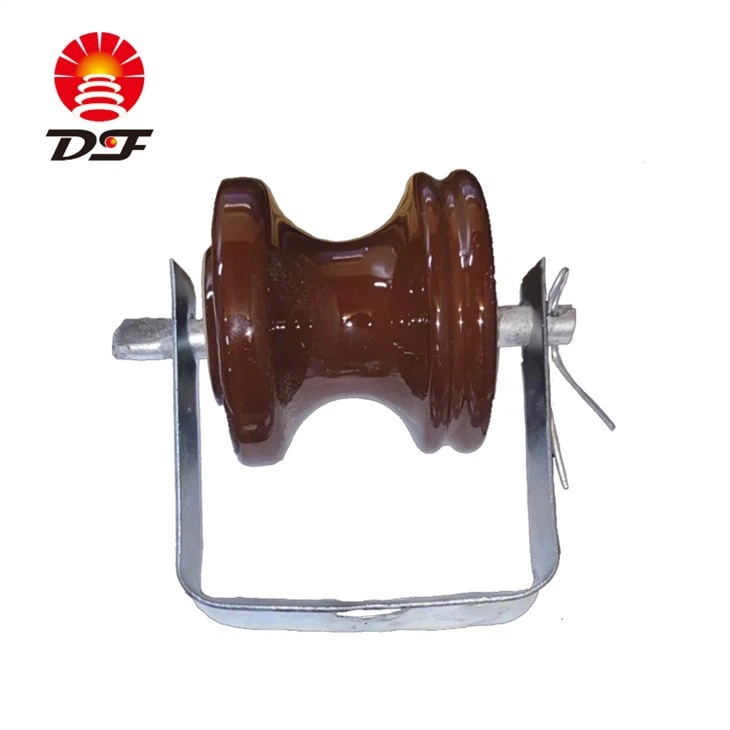

Porcelain spool insulators feem ntau yog siv los tiv thaiv thiab txhawb nqa cov khoom siv thib ob ntawm tus ncej. Lub spool insulator yog mounted rau tus ncej siv ntau yam clevis configurations thiab yog sib xws nrog tag nrho cov chaw tsim tshuaj paus kho vajtse tsim.

Technical specifications:

_20220608141658_

ANSI Chav Kawm		53-1	53-2	53-3	53-4	53-5
Qhov loj me (mm)	H	54	76	81	76	105
	D	57	79	76	105	102
	d	44	44	44	73	73
	d1	17.5	17.5	17.5	17.5	17.5
	R	11	17.5	11	16	11
Transverse zog (kN)		9	13	118	20	27
Lub hwj chim zaus flashover voltage (kV)	Qhuav	20	25	25	25	35

Peb Cov Kev Pabcuam:

1. Kev paub nplua nuj hauv ODM thiab OEM
2. Zoo heev One-stop service
3. High Quality Precision Customized forging & Casting kev pab cuam
4. Tus nqi qis tshaj
5. Kev tswj xyuas nruj
6. Peb tuaj yeem tsim nws raws li cov neeg siv khoom xav tau.

FAQ:

1 Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.

2.Q: Koj tus MOQ yog dab tsi?
A: Feem ntau, MOQ yog 100pcs, Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej

3.Q: Koj qhov kev pabcuam shipping yog dab tsi?
A: Peb tuaj yeem muab cov kev pabcuam rau kev booking nkoj, khoom sib sau ua ke, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

4.Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Lub sij hawm xa tuaj ntawm EXW yog 35-45 hnub tom qab hnub txiav txim. Anther, yog tias koj xav tau yog FOB, CIF lossis CFR lub sijhawm khoom xa tuaj, peb yuav qhia tom qab sib tham raws li koj qhov kev txiav txim qhov xwm txheej thiab peb cov sijhawm tsim khoom.
